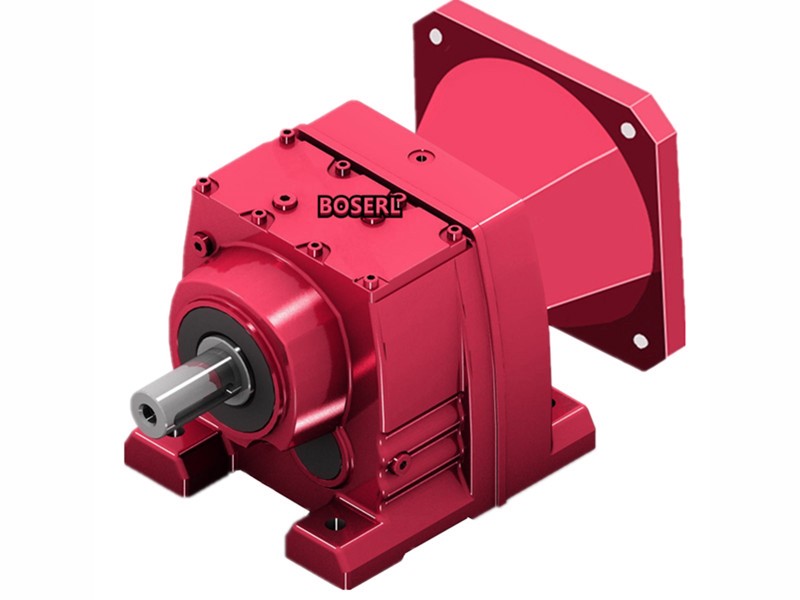

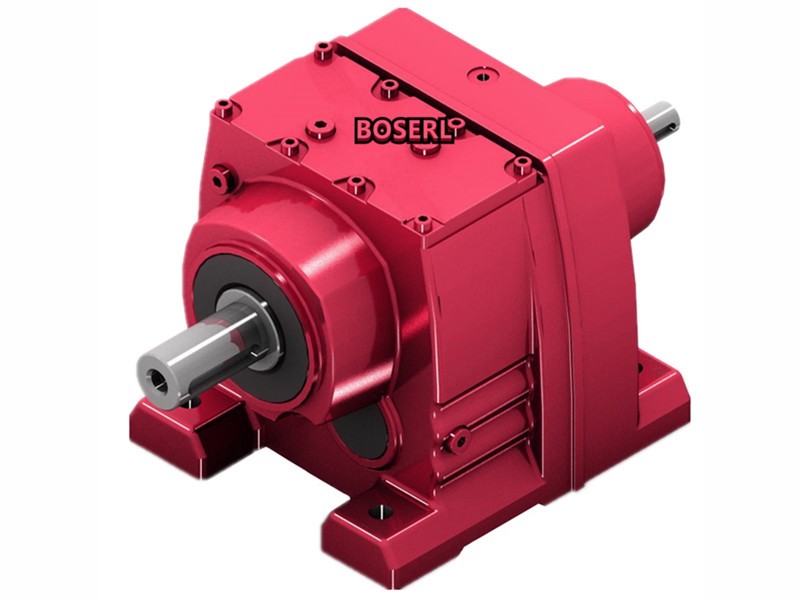

R138減速機詳細信息
R138減速機
訂購熱線：13360667204
R138減速機傳動比計算：齒輪減速馬達
輸送帶參數：輪子直徑300，負載27噸，一分鐘走8米
8米÷（0.3輪子直徑×3.14）=8.49轉每分鐘
27噸換算成N=270000N
270000×0.15輪子半徑×0.06摩擦系數=2430N.m
通常確保萬無一失，我們會把輸出扭矩放大兩倍2430×2=4860N.m
電機轉數1400÷輸出轉數8.49=164.89比
4860N.m輸出扭矩÷164.89比=29.47N.m電機扭矩
29.47N.m電機扭矩換算成功率4.67KW以上
對應的R138減速機選型參數：
型號：R138-B5.5KW
減速比：174.4
輸出轉數：8.3轉每分鐘
輸出扭矩：6290N.m
安全系數：1.25
R138減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）R系列減速機
R138臥式硬齒面斜齒輪減速機型號：
R137FDM112M4,R137FDM132L4,R137FDM132M4,R137FDM132MC4,R137FDM132ML4,R137FDM132S4,R137FDM160L4,R137FDM160M4,R137FDM160MC4,R137FDM160S4,R137FDM180L4,R137FDM180LC4,R137FDM180M4,R137FDM180S4,R137FDM200L4,R137FDM225M4,R137FDM225S4,R137FDM250M4,R137FDR112M4,R137FDR132L4,R137FDR132M4,R137FDR132MC4,R137FDR132ML4,R137FDR132S4,R137FDR160L4,R137FDR160M4,R137FDR160MC4,R137FDR160S4,R137FDR180L4,R137FDR180LC4,R137FDR180M4,R137FDR180S4,R137FDR200L4,R137FDR225M4,R137FDR225S4,R137FDR250M4,R137FDRE112M4,R137FDRE132L4,R137FDRE132M4,R137FDRE132MC4,R137FDRE132ML4,R137FDRE132S4,R137FDRE160L4,R137FDRE160M4,R137FDRE160MC4,R137FDRE160S4,R137FDRE180L4,R137FDRE180LC4,R137FDRE180M4,R137FDRE180S4,R137FDRE200L4,R137FDRE225M4,R137FDRE225S4,R137FDRE250M4,R137FDRN112M4,R137FDRN132L4,R137FDRN132M4,R137FDRN132MC4,R137FDRN132ML4,R137FDRN132S4,R137FDRN160L4,R137FDRN160M4,R137FDRN160MC4,R137FDRN160S4,R137FDRN180L4,R137FDRN180LC4,R137FDRN180M4,R137FDRN180S4,R137FDRN200L4,R137FDRN225M4,R137FDRN225S4,R137FDRN250M4,R137FDRS112M4,R137FDRS132L4,R137FDRS132M4,R137FDRS132MC4,R137FDRS132ML4,R137FDRS132S4,R137FDRS160L4,R137FDRS160M4,R137FDRS160MC4,R137FDRS160S4,R137FDRS180L4,R137FDRS180LC4,R137FDRS180M4,R137FDRS180S4,R137FDRS200L4,R137FDRS225M4,R137FDRS225S4,R137FDRS250M4,R137FDT112M4,R137FDT132L4,R137FDT132M4,R137FDT132MC4,R137FDT132ML4,R137FDT132S4,R137FDT160L4,R137FDT160M4,R137FDT160MC4,R137FDT160S4,R137FDT180L4,R137FDT180LC4,R137FDT180M4,R137FDT180S4,R137FDT200L4,R137FDT225M4,R137FDT225S4,R137FDT250M4,R137FDV112M4,R137FDV132L4,R137FDV132M4,R137FDV132MC4,R137FDV132ML4,R137FDV132S4,R137FDV160L4,R137FDV160M4,R137FDV160MC4,R137FDV160S4,R137FDV180L4,R137FDV180LC4,R137FDV180M4,R137FDV180S4,R137FDV200L4,R137FDV225M4,R137FDV225S4,R137FDV250M4,R137FDVE112M4,R137FDVE132L4,R137FDVE132M4,R137FDVE132MC4,R137FDVE132ML4,R137FDVE132S4,R137FDVE160L4,R137FDVE160M4,R137FDVE160MC4,R137FDVE160S4,R137FDVE180L4,R137FDVE180LC4,R137FDVE180M4,R137FDVE180S4,R137FDVE200L4,R137FDVE225M4,R137FDVE225S4,R137FDVE250M4,R137F-Y112M4,R137F-Y11KW,R137F-Y132M4,R137F-Y15KW,R137F-Y160M4,R137F-Y18.5KW,R137F-Y180M4,R137F-Y200M4,R137F-Y225M4,R137F-Y22KW,R137F-Y250M4,R137F-Y30KW,R137F-Y37KW,R137F-Y45KW,R137F-Y4KW,R137F-Y5.5KW,R137F-Y55KW,R137F-Y7.5KW,R137F-YEJ112M4,R137F-YEJ11KW,R137F-YEJ132M4,R137F-YEJ15KW,R137F-YEJ160M4,R137F-YEJ18.5KW,R137F-YEJ180M4,R137F-YEJ200M4,R137F-YEJ225M4,R137F-YEJ22KW,R137F-YEJ250M4,R137F-YEJ30KW,R137F-YEJ37KW,R137F-YEJ45KW,R137F-YEJ4KW,R137F-YEJ5.5KW,R137F-YEJ55KW,R137F-YEJ7.5KW,R137F-YVP112M4,R137F-YVP11KW,R137F-YVP132M4,R137F-YVP15KW,R137F-YVP160M4,R137F-YVP18.5KW,R137F-YVP180M4,R137F-YVP200M4,R137F-YVP225M4,R137F-YVP22KW,R137F-YVP250M4,R137F-YVP30KW,R137F-YVP37KW,R137F-YVP45KW,R137F-YVP4KW,R137F-YVP5.5KW,R137F-YVP55KW,R137F-YVP7.5KW,R137F-YVPEJ112M4,R137F-YVPEJ11KW,R137F-YVPEJ132M4,R137F-YVPEJ15KW,R137F-YVPEJ160M4,R137F-YVPEJ18.5KW,R137F-YVPEJ180M4,R137F-YVPEJ200M4,R137F-YVPEJ225M4,R137F-YVPEJ22KW,R137F-YVPEJ250M4,R137F-YVPEJ30KW,R137F-YVPEJ37KW,R137F-YVPEJ45KW,R137F-YVPEJ4KW,R137F-YVPEJ5.5KW,R137F-YVPEJ55KW,R137F-YVPEJ7.5KW。
R137系列減速機參數大全：同軸斜齒輪減速電機
R137F減速機配5.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R137F-Y5.5KW | 188.45 | 5.5kw | 300kg | 43800N |
| R137F-Y5.5KW | 174.4 | 5.5kw | 300kg | 51200N |
| R137F-Y5.5KW | 156.31 | 5.5kw | 300kg | 53900N |
| R137F-Y5.5KW | 141.12 | 5.5kw | 300kg | 55400N |
| R137F-Y5.5KW | 128.18 | 5.5kw | 300kg | 56500N |
| R137F-Y5.5KW | 113.72 | 5.5kw | 300kg | 57600N |
| R137F-Y5.5KW | 103.2 | 5.5kw | 300kg | 58300N |
| R137F-Y5.5KW | 88.7 | 5.5kw | 300kg | 59100N |
| R137F-Y5.5KW | 80.91 | 5.5kw | 300kg | 59500N |
| R137F-Y5.5KW | 73.49 | 5.5kw | 300kg | 59800N |
| R137F-Y5.5KW | 65.2 | 5.5kw | 300kg | 60200N |
| R137F-Y5.5KW | 59.17 | 5.5kw | 300kg | 60400N |
| R137F-Y5.5KW | 50.86 | 5.5kw | 300kg | 60700N |
R137F減速機配7.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R137F-Y7.5KW | 188.45 | 7.5kw | 300kg | 43800N |
| R137F-Y7.5KW | 174.4 | 7.5kw | 300kg | 51200N |
| R137F-Y7.5KW | 156.31 | 7.5kw | 300kg | 53900N |
| R137F-Y7.5KW | 141.12 | 7.5kw | 300kg | 55400N |
| R137F-Y7.5KW | 128.18 | 7.5kw | 300kg | 56500N |
| R137F-Y7.5KW | 113.72 | 7.5kw | 300kg | 57600N |
| R137F-Y7.5KW | 103.2 | 7.5kw | 300kg | 58300N |
| R137F-Y7.5KW | 88.7 | 7.5kw | 300kg | 59100N |
| R137F-Y7.5KW | 80.91 | 7.5kw | 300kg | 59500N |
| R137F-Y7.5KW | 73.49 | 7.5kw | 300kg | 59800N |
| R137F-Y7.5KW | 65.2 | 7.5kw | 300kg | 60200N |
| R137F-Y7.5KW | 59.17 | 7.5kw | 300kg | 60400N |
| R137F-Y7.5KW | 50.86 | 7.5kw | 300kg | 60700N |
R137F減速機配11KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R137F-Y11KW | 141.12 | 11kw | 320kg | 25000N |
| R137F-Y11KW | 128.18 | 11kw | 320kg | 45800N |
| R137F-Y11KW | 113.72 | 11kw | 320kg | 53000N |
| R137F-Y11KW | 103.2 | 11kw | 320kg | 54600N |
| R137F-Y11KW | 88.7 | 11kw | 320kg | 56400N |
| R137F-Y11KW | 80.91 | 11kw | 320kg | 57300N |
| R137F-Y11KW | 73.49 | 11kw | 320kg | 58000N |
| R137F-Y11KW | 65.2 | 11kw | 320kg | 58800N |
| R137F-Y11KW | 59.17 | 11kw | 320kg | 59200N |
| R137F-Y11KW | 50.86 | 11kw | 320kg | 59800N |
| R137F-Y11KW | 44.39 | 11kw | 320kg | 60200N |
| R137F-Y11KW | 37.65 | 11kw | 320kg | 60500N |
| R137F-Y11KW | 32.91 | 11kw | 320kg | 60700N |
R137F減速機配15KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R137F-Y15KW | 103.2 | 15kw | 355kg | 25900N |
| R137F-Y15KW | 88.7 | 15kw | 355kg | 51000N |
| R137F-Y15KW | 80.91 | 15kw | 355kg | 53500N |
| R137F-Y15KW | 73.49 | 15kw | 355kg | 55000N |
| R137F-Y15KW | 65.2 | 15kw | 355kg | 56400N |
| R137F-Y15KW | 59.17 | 15kw | 355kg | 57300N |
| R137F-Y15KW | 50.86 | 15kw | 355kg | 58400N |
| R137F-Y15KW | 44.39 | 15kw | 355kg | 59100N |
| R137F-Y15KW | 37.65 | 15kw | 355kg | 59800N |
| R137F-Y15KW | 32.91 | 15kw | 355kg | 60200N |
| R137F-Y15KW | 27.83 | 15kw | 355kg | 60500N |
R137F減速機配18.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R137F-Y18.5KW | 103.2 | 15kw | 355kg | 25900N |
| R137F-Y18.5KW | 88.7 | 15kw | 355kg | 51000N |
| R137F-Y18.5KW | 80.91 | 15kw | 355kg | 53500N |
| R137F-Y18.5KW | 73.49 | 15kw | 355kg | 55000N |
| R137F-Y18.5KW | 65.2 | 15kw | 355kg | 56400N |
| R137F-Y18.5KW | 59.17 | 15kw | 355kg | 57300N |
| R137F-Y18.5KW | 50.86 | 15kw | 355kg | 58400N |
| R137F-Y18.5KW | 44.39 | 15kw | 355kg | 59100N |
| R137F-Y18.5KW | 37.65 | 15kw | 355kg | 59800N |
| R137F-Y18.5KW | 32.91 | 15kw | 355kg | 60200N |
| R137F-Y18.5KW | 27.83 | 15kw | 355kg | 60500N |
R137F減速機配22KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R137F-Y22KW | 65.2 | 22kw | 390kg | 43100N |
| R137F-Y22KW | 59.17 | 22kw | 390kg | 51800N |
| R137F-Y22KW | 50.86 | 22kw | 390kg | 54800N |
| R137F-Y22KW | 44.39 | 22kw | 390kg | 56400N |
| R137F-Y22KW | 37.65 | 22kw | 390kg | 57900N |
| R137F-Y22KW | 32.91 | 22kw | 390kg | 58700N |
| R137F-Y22KW | 27.83 | 22kw | 390kg | 59500N |
| R137F-Y22KW | 29.57 | 22kw | 390kg | 59200N |
| R137F-Y22KW | 24.12 | 22kw | 390kg | 60000N |
| R137F-Y22KW | 22 | 22kw | 390kg | 60200N |
| R137F-Y22KW | 19.04 | 22kw | 390kg | 60500N |
| R137F-Y22KW | 16.8 | 22kw | 390kg | 60700N |
| R137F-Y22KW | 14.51 | 22kw | 390kg | 60900N |
| R137F-Y22KW | 12.83 | 22kw | 390kg | 61000N |
R137F減速機配30KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R137F-Y30KW | 50.86 | 30kw | 490kg | 32800N |
| R137F-Y30KW | 44.39 | 30kw | 490kg | 51300N |
| R137F-Y30KW | 37.65 | 30kw | 490kg | 54800N |
| R137F-Y30KW | 32.91 | 30kw | 490kg | 56400N |
| R137F-Y30KW | 27.83 | 30kw | 490kg | 57900N |
| R137F-Y30KW | 24.12 | 30kw | 490kg | 58800N |
| R137F-Y30KW | 22 | 30kw | 490kg | 59200N |
| R137F-Y30KW | 19.04 | 30kw | 490kg | 59800N |
| R137F-Y30KW | 16.8 | 30kw | 490kg | 60100N |
| R137F-Y30KW | 14.51 | 30kw | 490kg | 59500N |
| R137F-Y30KW | 12.83 | 30kw | 490kg | 58400N |
| R137F-Y30KW | 10.79 | 30kw | 490kg | 56600N |
| R137F-Y30KW | 7.59 | 30kw | 490kg | 53300N |
| R137F-Y30KW | 6.38 | 30kw | 490kg | 51200N |
R137F減速機配37KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R137F-Y37KW | 37.65 | 37kw | 520kg | 48500N |
| R137F-Y37KW | 32.91 | 37kw | 520kg | 53600N |
| R137F-Y37KW | 27.83 | 37kw | 520kg | 55900N |
| R137F-Y37KW | 24.12 | 37kw | 520kg | 57300N |
| R137F-Y37KW | 22 | 37kw | 520kg | 58000N |
| R137F-Y37KW | 19.04 | 37kw | 520kg | 57800N |
| R137F-Y37KW | 16.8 | 37kw | 520kg | 57300N |
| R137F-Y37KW | 14.51 | 37kw | 520kg | 56600N |
| R137F-Y37KW | 12.83 | 37kw | 520kg | 55800N |
| R137F-Y37KW | 10.79 | 37kw | 520kg | 54400N |
| R137F-Y37KW | 8.71 | 37kw | 520kg | 52600N |
| R137F-Y37KW | 7.59 | 37kw | 520kg | 51900N |
| R137F-Y37KW | 6.38 | 37kw | 520kg | 50100N |
| R137F-Y37KW | 5.15 | 37kw | 520kg | 47800N |
R137F減速機配45KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R137F-Y45KW | 32.91 | 45kw | 540kg | 39800N |
| R137F-Y45KW | 27.83 | 45kw | 540kg | 51300N |
| R137F-Y45KW | 24.12 | 45kw | 540kg | 52500N |
| R137F-Y45KW | 22 | 45kw | 540kg | 52900N |
| R137F-Y45KW | 19.04 | 45kw | 540kg | 53300N |
| R137F-Y45KW | 16.8 | 45kw | 540kg | 53400N |
| R137F-Y45KW | 14.51 | 45kw | 540kg | 53100N |
| R137F-Y45KW | 12.83 | 45kw | 540kg | 52700N |
| R137F-Y45KW | 10.79 | 45kw | 540kg | 51900N |
| R137F-Y45KW | 8.71 | 45kw | 540kg | 50500N |
| R137F-Y45KW | 7.59 | 45kw | 540kg | 50200N |
| R137F-Y45KW | 6.38 | 45kw | 540kg | 48600N |
| R137F-Y45KW | 5.15 | 45kw | 540kg | 46600N |
R137F減速機配55KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R137F-Y55KW | 19.04 | 55kw | 650kg | 47800N |
| R137F-Y55KW | 16.8 | 55kw | 650kg | 48500N |
| R137F-Y55KW | 14.51 | 55kw | 650kg | 48900N |
| R137F-Y55KW | 12.83 | 55kw | 650kg | 49000N |
| R137F-Y55KW | 10.79 | 55kw | 650kg | 48800N |
| R137F-Y55KW | 8.71 | 55kw | 650kg | 48000N |
| R137F-Y55KW | 7.59 | 55kw | 650kg | 48100N |
| R137F-Y55KW | 6.38 | 55kw | 650kg | 46900N |
| R137F-Y55KW | 5.15 | 55kw | 650kg | 45200N |
R138減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：R108減速機
關鍵詞:同向減速機臥式配電機一體式_R系列減速電機_R系列減速機_R系列減速器_同向減速器_GR型減速機_R向減速機_R系列斜齒輪減速機_GR系列減速機_R型減速機_GR系列斜齒輪減速機
R系列減速機型號：R18減速機,R28減速機,R38減速機,R48減速機,R58減速機,R68減速機,R78減速機,R88減速機,R98減速機,R108減速機,R138減速機,R148減速機,R168減速機
R系列齒輪減速馬達可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
