FAF28減速機詳細信息

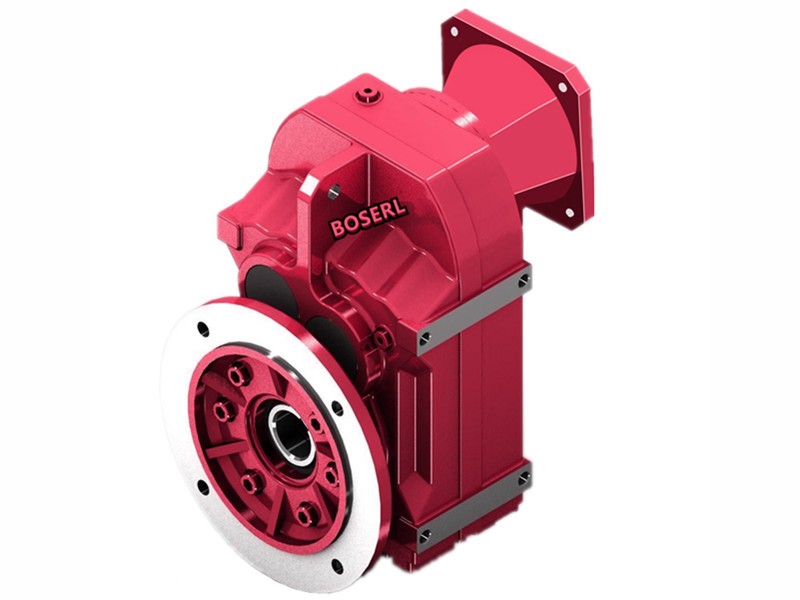

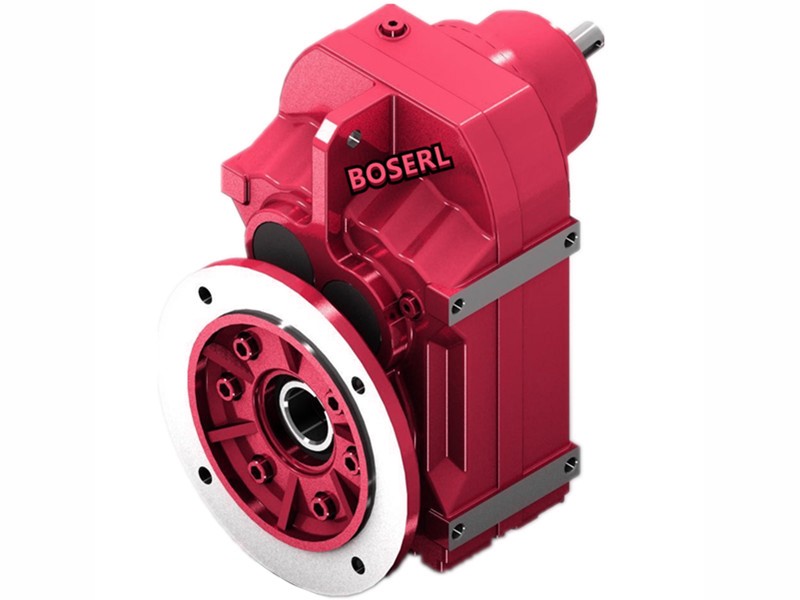

FAF28減速機
訂購熱線：13360667204
FAF28減速機選型計算：齒輪減速馬達
螺桿輸送線參數：一分鐘走2600mm，螺桿的導距10mm，載重1000kg
10mm螺桿的導距×2因為導距有兩面得出螺距=20mm
2600mm÷20mm=130r/min輸出轉數
載重1000kg=980N.m×0.06摩擦力=58.8N.m
1400÷130r/min=10.77減速比
58.8N.m÷10.77減速比=5.46N.m
5.46N.m換算成電機功率=0.87KW左右
對應的FAF28減速機選型參數：
型號：FAF28-BVPEJ1.1KW
減速比：10.55
輸出轉數：135r/min
輸出扭矩：78N.m
安全系數：1.65

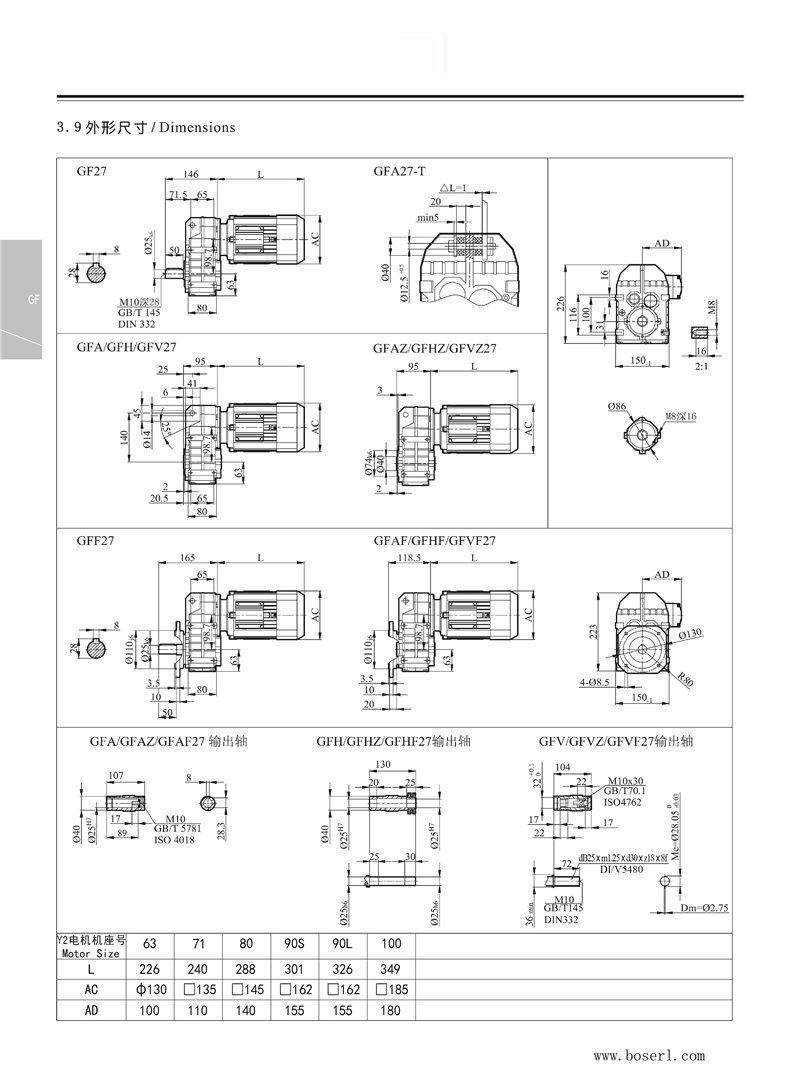

FAF28減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）變頻電機減速機
FAF28平行軸齒輪減速機型號：
FAF28系列減速機參數大全：平行軸斜齒輪減速機
減速機配0.12KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F27Y0.12KW | 0.12KW | 9.80rpm | 117N.m | 1.10 |
| F27Y0.12KW | 0.12KW | 11.0rpm | 107N.m | 1.20 |
| F27Y0.12KW | 0.12KW | 13.0rpm | 91N.m | 1.40 |
| F27Y0.12KW | 0.12KW | 15.0rpm | 79N.m | 1.65 |
| F27Y0.12KW | 0.12KW | 16.0rpm | 73N.m | 1.75 |
| F27Y0.12KW | 0.12KW | 18.0rpm | 64N.m | 2.00 |
| F27Y0.12KW | 0.12KW | 19.0rpm | 60N.m | 2.20 |
| F27Y0.12KW | 0.12KW | 22.0rpm | 53N.m | 2.40 |
| F27Y0.12KW | 0.12KW | 24.0rpm | 47N.m | 2.80 |
| F27Y0.12KW | 0.12KW | 28.0rpm | 42N.m | 3.10 |
| F27Y0.12KW | 0.12KW | 30.0rpm | 39N.m | 3.40 |
| F27Y0.12KW | 0.12KW | 34.0rpm | 34N.m | 3.80 |
| F27Y0.12KW | 0.12KW | 36.0rpm | 32N.m | 4.10 |
| F27Y0.12KW | 0.12KW | 41.0rpm | 28N.m | 4.60 |
| F27Y0.12KW | 0.12KW | 47.0rpm | 24N.m | 5.30 |
| F27Y0.12KW | 0.12KW | 51.0rpm | 23N.m | 5.80 |
| F27Y0.12KW | 0.12KW | 59.0rpm | 19N.m | 6.70 |
| F27Y0.12KW | 0.12KW | 68.0rpm | 17N.m | 7.80 |
| F27Y0.12KW | 0.12KW | 73.0rpm | 16N.m | 8.30 |
| F27Y0.12KW | 0.12KW | 85.0rpm | 14N.m | 9.60 |
| F27Y0.12KW | 0.12KW | 100rpm | 12N.m | 11.0 |
| F27Y0.12KW | 0.12KW | 112rpm | 10N.m | 13.0 |
| F27Y0.12KW | 0.12KW | 131rpm | 8.8N.m | 15.0 |
| F27Y0.12KW | 0.12KW | 140rpm | 8.2N.m | 16.0 |
| F27Y0.12KW | 0.12KW | 147rpm | 7.8N.m | 17.0 |
| F27Y0.12KW | 0.12KW | 170rpm | 6.7N.m | 18.0 |
| F27Y0.12KW | 0.12KW | 200rpm | 5.7N.m | 20.0 |
| F27Y0.12KW | 0.12KW | 224rpm | 5.1N.m | 21.0 |
| F27Y0.12KW | 0.12KW | 262rpm | 4.4N.m | 23.0 |
| F27Y0.12KW | 0.12KW | 280rpm | 4.1N.m | 23.0 |
| F27Y0.12KW | 0.12KW | 332rpm | 3.5N.m | 25.0 |
減速機配0.18KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F27Y0.18KW | 0.18KW | 12.0rpm | 143N.m | 0.90 |
| F27Y0.18KW | 0.18KW | 14.0rpm | 123N.m | 1.05 |
| F27Y0.18KW | 0.18KW | 15.0rpm | 115N.m | 1.15 |
| F27Y0.18KW | 0.18KW | 17.0rpm | 100N.m | 1.30 |
| F27Y0.18KW | 0.18KW | 18.0rpm | 94N.m | 1.40 |
| F27Y0.18KW | 0.18KW | 21.0rpm | 83N.m | 1.55 |
| F27Y0.18KW | 0.18KW | 23.0rpm | 74N.m | 1.75 |
| F27Y0.18KW | 0.18KW | 26.0rpm | 65N.m | 2.00 |
| F27Y0.18KW | 0.18KW | 28.0rpm | 61N.m | 2.10 |
| F27Y0.18KW | 0.18KW | 32.0rpm | 53N.m | 2.40 |
| F27Y0.18KW | 0.18KW | 34.0rpm | 50N.m | 2.60 |
| F27Y0.18KW | 0.18KW | 39.0rpm | 44N.m | 3.00 |
| F27Y0.18KW | 0.18KW | 45.0rpm | 38N.m | 3.40 |
| F27Y0.18KW | 0.18KW | 49.0rpm | 35N.m | 3.70 |
| F27Y0.18KW | 0.18KW | 57.0rpm | 30N.m | 4.30 |
| F27Y0.18KW | 0.18KW | 65.0rpm | 26N.m | 5.00 |
| F27Y0.18KW | 0.18KW | 70.0rpm | 24N.m | 5.30 |
| F27Y0.18KW | 0.18KW | 81.0rpm | 21N.m | 6.10 |
| F27Y0.18KW | 0.18KW | 95.0rpm | 18N.m | 7.20 |
| F27Y0.18KW | 0.18KW | 107rpm | 16N.m | 8.10 |
| F27Y0.18KW | 0.18KW | 125rpm | 14N.m | 9.50 |
| F27Y0.18KW | 0.18KW | 134rpm | 13N.m | 10.0 |
| F27Y0.18KW | 0.18KW | 140rpm | 12N.m | 11.0 |
| F27Y0.18KW | 0.18KW | 162rpm | 11N.m | 12.0 |
| F27Y0.18KW | 0.18KW | 191rpm | 9N.m | 13.0 |
| F27Y0.18KW | 0.18KW | 214rpm | 8N.m | 14.0 |
| F27Y0.18KW | 0.18KW | 251rpm | 6.9N.m | 14.0 |
| F27Y0.18KW | 0.18KW | 268rpm | 6.4N.m | 15.0 |
| F27Y0.18KW | 0.18KW | 318rpm | 5.4N.m | 16.0 |
減速機配0.25KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F27Y0.25KW | 0.25KW | 17.0rpm | 142N.m | 0.90 |
| F27Y0.25KW | 0.25KW | 18.0rpm | 133N.m | 1.00 |
| F27Y0.25KW | 0.25KW | 20.0rpm | 117N.m | 1.10 |
| F27Y0.25KW | 0.25KW | 23.0rpm | 104N.m | 1.25 |
| F27Y0.25KW | 0.25KW | 26.0rpm | 92N.m | 1.40 |
| F27Y0.25KW | 0.25KW | 28.0rpm | 86N.m | 1.50 |
| F27Y0.25KW | 0.25KW | 32.0rpm | 75N.m | 1.75 |
| F27Y0.25KW | 0.25KW | 34.0rpm | 70N.m | 1.85 |
| F27Y0.25KW | 0.25KW | 38.0rpm | 62N.m | 2.10 |
| F27Y0.25KW | 0.25KW | 44.0rpm | 54N.m | 2.40 |
| F27Y0.25KW | 0.25KW | 48.0rpm | 50N.m | 2.60 |
| F27Y0.25KW | 0.25KW | 56.0rpm | 43N.m | 3.00 |
| F27Y0.25KW | 0.25KW | 64.0rpm | 37N.m | 3.50 |
| F27Y0.25KW | 0.25KW | 69.0rpm | 35N.m | 3.80 |
| F27Y0.25KW | 0.25KW | 80.0rpm | 30N.m | 4.40 |
| F27Y0.25KW | 0.25KW | 94.0rpm | 25N.m | 5.10 |
| F27Y0.25KW | 0.25KW | 105rpm | 23N.m | 5.70 |
| F27Y0.25KW | 0.25KW | 123rpm | 19N.m | 6.70 |
| F27Y0.25KW | 0.25KW | 132rpm | 18N.m | 7.20 |
| F27Y0.25KW | 0.25KW | 138rpm | 17N.m | 7.50 |
| F27Y0.25KW | 0.25KW | 160rpm | 15N.m | 8.30 |
| F27Y0.25KW | 0.25KW | 188rpm | 13N.m | 9.00 |
| F27Y0.25KW | 0.25KW | 211rpm | 11N.m | 9.60 |
| F27Y0.25KW | 0.25KW | 247rpm | 9.7N.m | 10.0 |
| F27Y0.25KW | 0.25KW | 264rpm | 9.1N.m | 11.0 |
| F27Y0.25KW | 0.25KW | 313rpm | 7.6N.m | 11.0 |
減速機配0.37KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F27Y0.37KW | 0.37KW | 24.0rpm | 145N.m | 0.90 |
| F27Y0.37KW | 0.37KW | 28.0rpm | 128N.m | 1.00 |
| F27Y0.37KW | 0.37KW | 30.0rpm | 120N.m | 1.10 |
| F27Y0.37KW | 0.37KW | 34.0rpm | 105N.m | 1.25 |
| F27Y0.37KW | 0.37KW | 36.0rpm | 98N.m | 1.35 |
| F27Y0.37KW | 0.37KW | 41.0rpm | 87N.m | 1.50 |
| F27Y0.37KW | 0.37KW | 47.0rpm | 76N.m | 1.70 |
| F27Y0.37KW | 0.37KW | 51.0rpm | 70N.m | 1.85 |
| F27Y0.37KW | 0.37KW | 59.0rpm | 60N.m | 2.20 |
| F27Y0.37KW | 0.37KW | 68.0rpm | 52N.m | 2.50 |
| F27Y0.37KW | 0.37KW | 73.0rpm | 48N.m | 2.70 |
| F27Y0.37KW | 0.37KW | 85.0rpm | 42N.m | 3.10 |
| F27Y0.37KW | 0.37KW | 100rpm | 35N.m | 3.70 |
| F27Y0.37KW | 0.37KW | 112rpm | 32N.m | 4.10 |
| F27Y0.37KW | 0.37KW | 131rpm | 27N.m | 4.80 |
| F27Y0.37KW | 0.37KW | 140rpm | 25N.m | 5.10 |
| F27Y0.37KW | 0.37KW | 147rpm | 24N.m | 5.40 |
| F27Y0.37KW | 0.37KW | 170rpm | 21N.m | 5.90 |
| F27Y0.37KW | 0.37KW | 200rpm | 18N.m | 6.40 |
| F27Y0.37KW | 0.37KW | 224rpm | 16N.m | 6.90 |
| F27Y0.37KW | 0.37KW | 262rpm | 14N.m | 7.40 |
| F27Y0.37KW | 0.37KW | 280rpm | 13N.m | 7.60 |
| F27Y0.37KW | 0.37KW | 332rpm | 11N.m | 8.20 |
減速機配0.55KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F27Y0.55KW | 0.55KW | 59.0rpm | 88N.m | 1.45 |
| F27Y0.55KW | 0.55KW | 68.0rpm | 77N.m | 1.70 |
| F27Y0.55KW | 0.55KW | 73.0rpm | 72N.m | 1.80 |
| F27Y0.55KW | 0.55KW | 85.0rpm | 62N.m | 2.10 |
| F27Y0.55KW | 0.55KW | 100rpm | 53N.m | 2.50 |
| F27Y0.55KW | 0.55KW | 112rpm | 47N.m | 2.80 |
| F27Y0.55KW | 0.55KW | 131rpm | 40N.m | 3.20 |
| F27Y0.55KW | 0.55KW | 140rpm | 38N.m | 3.50 |
| F27Y0.55KW | 0.55KW | 147rpm | 36N.m | 3.60 |
| F27Y0.55KW | 0.55KW | 170rpm | 31N.m | 4.00 |
| F27Y0.55KW | 0.55KW | 200rpm | 26N.m | 4.30 |
| F27Y0.55KW | 0.55KW | 224rpm | 24N.m | 4.60 |
| F27Y0.55KW | 0.55KW | 262rpm | 20N.m | 5.00 |
| F27Y0.55KW | 0.55KW | 280rpm | 19N.m | 5.10 |
| F27Y0.55KW | 0.55KW | 332rpm | 16N.m | 5.50 |
減速機配0.75KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F27Y0.75KW | 0.75KW | 62.0rpm | 116N.m | 1.10 |
| F27Y0.75KW | 0.75KW | 71.0rpm | 101N.m | 1.30 |
| F27Y0.75KW | 0.75KW | 76.0rpm | 94N.m | 1.40 |
| F27Y0.75KW | 0.75KW | 88.0rpm | 81N.m | 1.60 |
| F27Y0.75KW | 0.75KW | 104rpm | 69N.m | 1.90 |
| F27Y0.75KW | 0.75KW | 116rpm | 62N.m | 2.10 |
| F27Y0.75KW | 0.75KW | 136rpm | 53N.m | 2.50 |
| F27Y0.75KW | 0.75KW | 145rpm | 49N.m | 2.60 |
| F27Y0.75KW | 0.75KW | 153rpm | 47N.m | 2.80 |
| F27Y0.75KW | 0.75KW | 177rpm | 41N.m | 3.00 |
| F27Y0.75KW | 0.75KW | 208rpm | 34N.m | 3.30 |
| F27Y0.75KW | 0.75KW | 233rpm | 31N.m | 3.50 |
| F27Y0.75KW | 0.75KW | 272rpm | 26N.m | 3.80 |
| F27Y0.75KW | 0.75KW | 291rpm | 25N.m | 3.90 |
| F27Y0.75KW | 0.75KW | 345rpm | 21N.m | 4.20 |
減速機配1.1KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F27Y1.1KW | 1.1KW | 70.0rpm | 149N.m | 0.85 |
| F27Y1.1KW | 1.1KW | 75.0rpm | 139N.m | 0.95 |
| F27Y1.1KW | 1.1KW | 87.0rpm | 120N.m | 1.10 |
| F27Y1.1KW | 1.1KW | 103rpm | 102N.m | 1.25 |
| F27Y1.1KW | 1.1KW | 115rpm | 91N.m | 1.40 |
| F27Y1.1KW | 1.1KW | 135rpm | 78N.m | 1.65 |
| F27Y1.1KW | 1.1KW | 144rpm | 73N.m | 1.80 |
| F27Y1.1KW | 1.1KW | 151rpm | 70N.m | 1.85 |
| F27Y1.1KW | 1.1KW | 175rpm | 60N.m | 2.00 |
| F27Y1.1KW | 1.1KW | 206rpm | 51N.m | 2.20 |
| F27Y1.1KW | 1.1KW | 230rpm | 46N.m | 2.40 |
| F27Y1.1KW | 1.1KW | 270rpm | 39N.m | 2.60 |
| F27Y1.1KW | 1.1KW | 288rpm | 36N.m | 2.60 |
| F27Y1.1KW | 1.1KW | 342rpm | 31N.m | 2.80 |
減速機配1.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F27Y1.5KW | 1.5KW | 103rpm | 139N.m | 0.95 |
| F27Y1.5KW | 1.5KW | 116rpm | 124N.m | 1.05 |
| F27Y1.5KW | 1.5KW | 136rpm | 106N.m | 1.25 |
| F27Y1.5KW | 1.5KW | 145rpm | 99N.m | 1.30 |
| F27Y1.5KW | 1.5KW | 152rpm | 94N.m | 1.40 |
| F27Y1.5KW | 1.5KW | 176rpm | 81N.m | 1.50 |
| F27Y1.5KW | 1.5KW | 207rpm | 69N.m | 1.65 |
| F27Y1.5KW | 1.5KW | 232rpm | 62N.m | 1.75 |
| F27Y1.5KW | 1.5KW | 271rpm | 53N.m | 1.90 |
| F27Y1.5KW | 1.5KW | 290rpm | 49N.m | 1.95 |
| F27Y1.5KW | 1.5KW | 344rpm | 42N.m | 2.10 |
減速機配2.2KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F27Y2.2KW | 2.2KW | 177rpm | 119N.m | 1.10 |
| F27Y2.2KW | 2.2KW | 208rpm | 101N.m | 1.30 |
| F27Y2.2KW | 2.2KW | 233rpm | 90N.m | 1.45 |
| F27Y2.2KW | 2.2KW | 273rpm | 77N.m | 1.70 |
| F27Y2.2KW | 2.2KW | 291rpm | 72N.m | 1.80 |
| F27Y2.2KW | 2.2KW | 354rpm | 59N.m | 2.10 |
| F27Y2.2KW | 2.2KW | 417rpm | 50N.m | 2.30 |
| F27Y2.2KW | 2.2KW | 467rpm | 45N.m | 2.40 |
| F27Y2.2KW | 2.2KW | 547rpm | 38N.m | 2.60 |
| F27Y2.2KW | 2.2KW | 584rpm | 36N.m | 2.70 |
| F27Y2.2KW | 2.2KW | 693rpm | 30N.m | 2.90 |
FAF28減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：F28減速機
關鍵詞:GFAF系列減速器一體式_配變頻電機減速機_調速電機減速機_FAF系列減速機_扁平減速機_FAF向減速機_變頻減速機_調速減速機_GFAF系列減速機_FAF系列減速器
FAF系列齒輪減速馬達型號：FAF28減速機,FAF38減速機,FAF48減速機,FAF68減速機,FAF78減速機,FAF88減速機,FAF98減速機,FAF108減速機,FAF128減速機,FAF158減速機
FAF系列電動機減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: FAF28減速機 FAF27平行軸齒輪減速機 FAF27系列減速機 FAF27減速機傳動比 FAF27減速機選型參數 FAF27減速機CAD三維圖
