F88R58減速機詳細信息
F88R58減速機
F88R58減速機電機功率：F88R58Y0.12KW減速機,F88R58Y0.18KW減速機,F88R58Y0.25KW減速機,F88R58Y0.37KW減速機,F88R58Y0.55KW減速機,F88R58Y0.75KW減速機,F88R58Y1.1KW減速機,F88R58Y1.5KW減速機（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。
F88R58減速機配0.12KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| F88R58-Y0.12KW | 4245 | 0.12KW | 0.33r/min | 2760N.m | 173.5kg | 23800N | 1.10 |
| F88R58-Y0.12KW | 3721 | 0.12KW | 0.37r/min | 2210N.m | 173.5kg | 25800N | 1.35 |
| F88R58-Y0.12KW | 3244 | 0.12KW | 0.43r/min | 2240N.m | 173.5kg | 25700N | 1.35 |
| F88R58-Y0.12KW | 2881 | 0.12KW | 0.48r/min | 1990N.m | 173.5kg | 26500N | 1.50 |
| F88R58-Y0.12KW | 2576 | 0.12KW | 0.54r/min | 1780N.m | 173.5kg | 27100N | 1.70 |
| F88R58-Y0.12KW | 2199 | 0.12KW | 0.63r/min | 1510N.m | 173.5kg | 27800N | 2.00 |
| F88R58-Y0.12KW | 1930 | 0.12KW | 0.72r/min | 1300N.m | 173.5kg | 28300N | 2.30 |
| F88R58-Y0.12KW | 1709 | 0.12KW | 0.81r/min | 1170N.m | 173.5kg | 28600N | 2.60 |
| F88R58-Y0.12KW | 1493 | 0.12KW | 0.92r/min | 1030N.m | 173.5kg | 28900N | 2.90 |
| F88R58-Y0.12KW | 1300 | 0.12KW | 1.10r/min | 820N.m | 173.5kg | 29300N | 3.70 |
| F88R58-Y0.12KW | 1148 | 0.12KW | 1.20r/min | 745N.m | 173.5kg | 29500N | 4.00 |
F88R58減速機配0.18KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| F88R58-Y0.18KW | 2576 | 0.18KW | 0.51r/min | 2920N.m | 174kg | 22300N | 1.00 |
| F88R58-Y0.18KW | 2199 | 0.18KW | 0.60r/min | 2490N.m | 174kg | 24800N | 1.20 |
| F88R58-Y0.18KW | 1930 | 0.18KW | 0.68r/min | 2160N.m | 174kg | 25900N | 1.40 |
| F88R58-Y0.18KW | 1709 | 0.18KW | 0.77r/min | 1930N.m | 174kg | 26600N | 1.55 |
| F88R58-Y0.18KW | 1493 | 0.18KW | 0.88r/min | 1690N.m | 174kg | 27300N | 1.75 |
| F88R58-Y0.18KW | 1300 | 0.18KW | 1.00r/min | 1390N.m | 174kg | 28100N | 2.10 |
| F88R58-Y0.18KW | 1148 | 0.18KW | 1.20r/min | 1250N.m | 174kg | 28400N | 2.40 |
| F88R58-Y0.18KW | 1010 | 0.18KW | 1.30r/min | 1080N.m | 174kg | 28800N | 2.80 |
| F88R58-Y0.18KW | 887 | 0.18KW | 1.50r/min | 970N.m | 174kg | 29000N | 3.10 |
| F88R58-Y0.18KW | 780 | 0.18KW | 1.70r/min | 830N.m | 174kg | 29300N | 3.60 |
F88R58減速機配0.25KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| F88R58-Y0.25KW | 1930 | 0.25KW | 0.67r/min | 3130N.m | 178kg | 13500N | 0.95 |
| F88R58-Y0.25KW | 1709 | 0.25KW | 0.76r/min | 2790N.m | 178kg | 23700N | 1.05 |
| F88R58-Y0.25KW | 1493 | 0.25KW | 0.87r/min | 2440N.m | 178kg | 25000N | 1.25 |
| F88R58-Y0.25KW | 1300 | 0.25KW | 1.00r/min | 2050N.m | 178kg | 26300N | 1.45 |
| F88R58-Y0.25KW | 1148 | 0.25KW | 1.10r/min | 1830N.m | 178kg | 26900N | 1.65 |
| F88R58-Y0.25KW | 1010 | 0.25KW | 1.30r/min | 1590N.m | 178kg | 27600N | 1.90 |
| F88R58-Y0.25KW | 887 | 0.25KW | 1.50r/min | 1410N.m | 178kg | 28000N | 2.10 |
| F88R58-Y0.25KW | 780 | 0.25KW | 1.70r/min | 1230N.m | 178kg | 28500N | 2.40 |
| F88R58-Y0.25KW | 674 | 0.25KW | 1.90 r/min | 1040N.m | 178kg | 28900N | 2.90 |
F88R58減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| F88R58-Y0.37KW | 1300 | 0.37KW | 1.10r/min | 2930N.m | 178.5kg | 22000N | 1.00 |
| F88R58-Y0.37KW | 1148 | 0.37KW | 1.20r/min | 2610N.m | 178.5kg | 24400N | 1.15 |
| F88R58-Y0.37KW | 1010 | 0.37KW | 1.40r/min | 2280N.m | 178.5kg | 25600N | 1.30 |
| F88R58-Y0.37KW | 887 | 0.37KW | 1.60r/min | 2010N.m | 178.5kg | 26400N | 1.50 |
| F88R58-Y0.37KW | 780 | 0.37KW | 1.80r/min | 1760N.m | 178.5kg | 27100N | 1.70 |
| F88R58-Y0.37KW | 674 | 0.37KW | 2.00r/min | 1500N.m | 178.5kg | 27800N | 2.00 |
| F88R58-Y0.37KW | 609 | 0.37KW | 2.30r/min | 1370N.m | 178.5kg | 28100N | 2.20 |
| F88R58-Y0.37KW | 515 | 0.37KW | 2.70r/min | 1150N.m | 178.5kg | 28600N | 2.60 |
| F88R58-Y0.37KW | 452 | 0.37KW | 3.00r/min | 1020N.m | 178.5kg | 28900N | 2.90 |
F88R58減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| F88R58-Y0.55KW | 887 | 0.55KW | 1.60r/min | 3050N.m | 183kg | 17400N | 1.00 |
| F88R58-Y0.55KW | 780 | 0.55KW | 1.80r/min | 2670N.m | 183kg | 24200N | 1.10 |
| F88R58-Y0.55KW | 674 | 0.55KW | 2.00r/min | 2290N.m | 183kg | 25500N | 1.30 |
| F88R58-Y0.55KW | 609 | 0.55KW | 2.30r/min | 2080N.m | 183kg | 26200N | 1.45 |
| F88R58-Y0.55KW | 515 | 0.55KW | 2.70r/min | 1760N.m | 183kg | 27100N | 1.70 |
| F88R58-Y0.55KW | 452 | 0.55KW | 3.00r/min | 1550N.m | 183kg | 27700N | 1.95 |
| F88R58-Y0.55KW | 345 | 0.55KW | 4.00r/min | 1160N.m | 183kg | 28600N | 2.60 |
F88R58減速機配0.75KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| F88R58-Y0.75KW | 674 | 0.75KW | 2.10r/min | 3040N.m | 184kg | 18000N | 1.00 |
| F88R58-Y0.75KW | 609 | 0.75KW | 2.40r/min | 2760N.m | 184kg | 23800N | 1.10 |
| F88R58-Y0.75KW | 515 | 0.75KW | 2.80r/min | 2330N.m | 184kg | 25400N | 1.30 |
| F88R58-Y0.75KW | 452 | 0.75KW | 3.20r/min | 2050N.m | 184kg | 26300N | 1.45 |
| F88R58-Y0.75KW | 345 | 0.75KW | 4.20r/min | 1540N.m | 184kg | 27700N | 1.95 |
F88R58減速機配1.1KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| F88R58-Y1.1KW | 452 | 1.1KW | 3.10r/min | 3080N.m | 188kg | 16400N | 0.95 |
| F88R58-Y1.1KW | 345 | 1.1KW | 4.10r/min | 2320N.m | 188kg | 25400N | 1.30 |
| F88R58-Y1.1KW | 300 | 1.1KW | 4.70r/min | 2010N.m | 188kg | 26400N | 1.50 |
| F88R58-Y1.1KW | 249 | 1.1KW | 5.70r/min | 1670N.m | 188kg | 27400N | 1.80 |
F88R58減速機配1.5KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| F88R58-Y1.5KW | 300 | 1.5KW | 4.80r/min | 2760N.m | 191kg | 23900N | 1.10 |
| F88R58-Y1.5KW | 249 | 1.5KW | 5.70r/min | 2290N.m | 191kg | 25500N | 1.30 |
F88R58減速器減速比：249比減速器,300比減速器,345比齒輪減速馬達,452比減速器,515比減速器,609比減速器,674比減速器,780比減速器,887比減速器,1010比減速器,1148比減速器,1300比減速器,1493比減速器,1709比減速器,1930比減速器,2199比減速器,2576比減速器,2881比減速器,3244比減速器,3721比減速器,4245比減速器。
F88R58減速機電機安裝尺寸：輸出軸Φ60+鍵4（可定做），高531*寬330*長561（帶輸出軸）
F88R58減速電機輸出轉數：0.33轉減速電機,0.37轉減速電機,0.43轉減速電機,0.48轉減速電機,0.51轉減速電機,0.54轉減速電機,0.6轉減速電機,0.63轉減速電機,0.67轉減速電機,0.68轉減速電機,0.72轉減速電機,0.76轉減速電機,0.77轉減速電機,0.81轉減速電機,0.87轉減速電機,0.88轉減速電機,0.92轉減速電機,1轉減速電機,1.1轉減速電機,1.2轉減速電機,1.3轉減速電機,1.4轉減速電機,1.5轉減速電機,1.6轉減速電機,1.7轉減速電機,1.8轉減速電機,1.9轉減速電機,2轉減速電機,2.1轉減速電機,2.3轉減速電機,2.4轉減速電機,2.7轉減速電機,2.8轉減速電機,3轉減速電機,3.1轉減速電機,3.2轉平行軸斜齒輪減速機,4轉減速電機,4.1轉減速電機,4.2轉減速電機,4.7轉減速電機,4.8轉減速電機,5.7轉減速電機。
F88R58減速箱電機輸出扭矩：745N.m減速箱,820N.m減速箱,830N.m減速箱,970N.m減速箱,1020N.m減速箱,1030N.m減速箱,1040N.m減速箱,1080N.m減速箱,1150N.m減速箱,1160N.m減速箱,1170N.m減速箱,1230N.m減速箱,1250N.m減速箱,1300N.m減速箱,1370N.m減速箱,1390N.m減速箱,1410N.m減速箱,1500N.m減速箱,1510N.m減速箱,1540N.m減速箱,1550N.m減速箱,1590N.m減速箱,1670N.m減速箱,1690N.m減速箱,1760N.m減速箱,1780N.m減速箱,1830N.m減速箱,1930N.m減速箱,1990N.m減速箱,2010N.m減速箱,2050N.m減速箱,2080N.m減速箱,2160N.m減速箱,2210N.m減速箱,2240N.m減速箱,2280N.m減速箱,2290N.m減速箱,2320N.m減速箱,2330N.m減速箱,2440N.m減速箱,2490N.m減速箱,2610N.m減速箱,2670N.m減速箱,2760N.m減速箱,2790N.m減速箱,2920N.m減速箱,2930N.m減速箱,3040N.m減速箱,3050N.m減速箱,3080N.m減速箱,3130N.m減速箱。

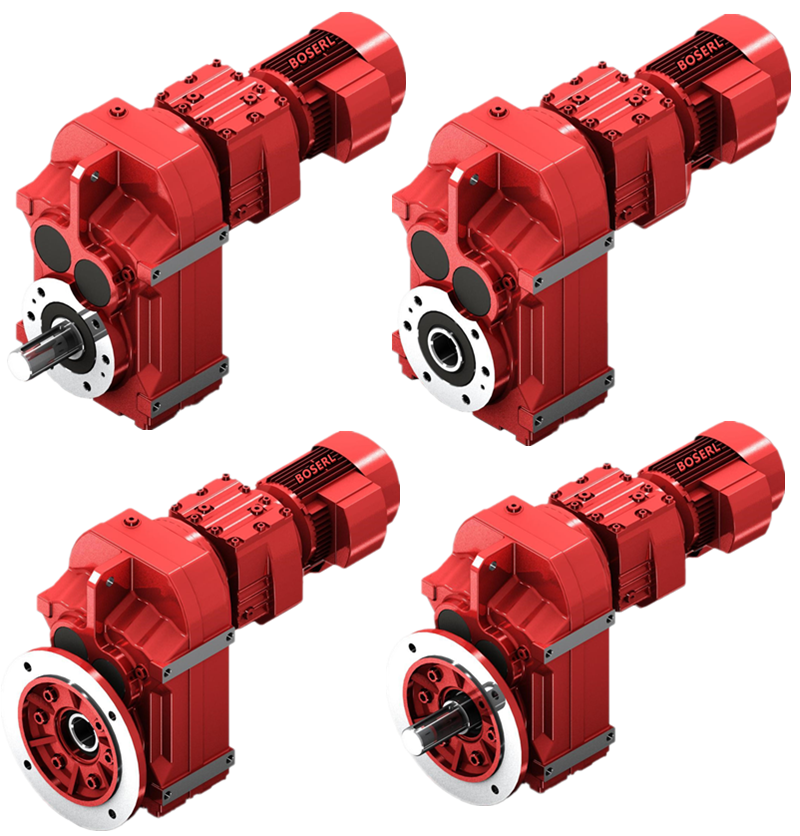

F88R58減速機電機各種輸出實物圖：
F88R58減速馬達型號：
FHZ87R57DM63L4,FHZ87R57DM63M4,FHZ87R57DM63MS4,FHZ87R57DM63S4,FHZ87R57DM71D4,FHZ87R57DM71M4,FHZ87R57DM71MS4,FHZ87R57DM71S4,FHZ87R57DM80K4,FHZ87R57DM80M4,FHZ87R57DM80MK4,FHZ87R57DM80N4,FHZ87R57DM80S4,FHZ87R57DM90L4,FHZ87R57DM90M4,FHZ87R57DM90S4,FHZ87R57DR63L4,FHZ87R57DR63M4,FHZ87R57DR63MS4,FHZ87R57DR63S4,FHZ87R57DR71D4,FHZ87R57DR71M4,FHZ87R57DR71MS4,FHZ87R57DR71S4,FHZ87R57DR80K4,FHZ87R57DR80M4,FHZ87R57DR80MK4,FHZ87R57DR80N4,FHZ87R57DR80S4,FHZ87R57DR90L4,FHZ87R57DR90M4,FHZ87R57DR90S4,FHZ87R57DRE63L4,FHZ87R57DRE63M4,FHZ87R57DRE63MS4,FHZ87R57DRE63S4,FHZ87R57DRE71D4,FHZ87R57DRE71M4,FHZ87R57DRE71MS4,FHZ87R57DRE71S4,FHZ87R57DRE80K4,FHZ87R57DRE80M4,FHZ87R57DRE80MK4,FHZ87R57DRE80N4,FHZ87R57DRE80S4,FHZ87R57DRE90L4,FHZ87R57DRE90M4,FHZ87R57DRE90S4,FHZ87R57DRN63L4,FHZ87R57DRN63M4,FHZ87R57DRN63MS4,FHZ87R57DRN63S4,FHZ87R57DRN71D4,FHZ87R57DRN71M4,FHZ87R57DRN71MS4,FHZ87R57DRN71S4,FHZ87R57DRN80K4,FHZ87R57DRN80M4,FHZ87R57DRN80MK4,FHZ87R57DRN80N4,FHZ87R57DRN80S4,FHZ87R57DRN90L4,FHZ87R57DRN90M4,FHZ87R57DRN90S4,FHZ87R57DRS63L4,FHZ87R57DRS63M4,FHZ87R57DRS63MS4,FHZ87R57DRS63S4,FHZ87R57DRS71D4,FHZ87R57DRS71M4,FHZ87R57DRS71MS4,FHZ87R57DRS71S4,FHZ87R57DRS80K4,FHZ87R57DRS80M4,FHZ87R57DRS80MK4,FHZ87R57DRS80N4,FHZ87R57DRS80S4,FHZ87R57DRS90L4,FHZ87R57DRS90M4,FHZ87R57DRS90S4,FHZ87R57DT63L4,FHZ87R57DT63M4,FHZ87R57DT63MS4,FHZ87R57DT63S4,FHZ87R57DT71D4,FHZ87R57DT71M4,FHZ87R57DT71MS4,FHZ87R57DT71S4,FHZ87R57DT80K4,FHZ87R57DT80M4,FHZ87R57DT80MK4,FHZ87R57DT80N4,FHZ87R57DT80S4,FHZ87R57DT90L4,FHZ87R57DT90M4,FHZ87R57DT90S4,FHZ87R57DV63L4,FHZ87R57DV63M4,FHZ87R57DV63MS4,FHZ87R57DV63S4,FHZ87R57DV71D4,FHZ87R57DV71M4,FHZ87R57DV71MS4,FHZ87R57DV71S4,FHZ87R57DV80K4,FHZ87R57DV80M4,FHZ87R57DV80MK4,FHZ87R57DV80N4,FHZ87R57DV80S4,FHZ87R57DV90L4,FHZ87R57DV90M4,FHZ87R57DV90S4,FHZ87R57DVE63L4,FHZ87R57DVE63M4,FHZ87R57DVE63MS4,FHZ87R57DVE63S4,FHZ87R57DVE71D4,FHZ87R57DVE71M4,FHZ87R57DVE71MS4,FHZ87R57DVE71S4,FHZ87R57DVE80K4,FHZ87R57DVE80M4,FHZ87R57DVE80MK4,FHZ87R57DVE80N4,FHZ87R57DVE80S4,FHZ87R57DVE90L4,FHZ87R57DVE90M4,FHZ87R57DVE90S4,FHZ87RF57-Y0.12KW,FHZ87RF57-Y0.18KW,FHZ87RF57-Y0.25KW,FHZ87RF57-Y0.37KW,FHZ87RF57-Y0.55KW,FHZ87RF57-Y0.75KW,FHZ87RF57-Y1.1KW,FHZ87RF57-Y1.5KW,FHZ87RF57-Y63M4,FHZ87RF57-Y71M4,FHZ87RF57-Y80M4,FHZ87RF57-Y90M4,FHZ87RF57-YEJ0.12KW,FHZ87RF57-YEJ0.18KW,FHZ87RF57-YEJ0.25KW,FHZ87RF57-YEJ0.37KW,FHZ87RF57-YEJ0.55KW,FHZ87RF57-YEJ0.75KW,FHZ87RF57-YEJ1.1KW,FHZ87RF57-YEJ1.5KW,FHZ87RF57-YEJ63M4,FHZ87RF57-YEJ71M4,FHZ87RF57-YEJ80M4,FHZ87RF57-YEJ90S4,FHZ87RF57-YVP0.12KW,FHZ87RF57-YVP0.18KW,FHZ87RF57-YVP0.25KW,FHZ87RF57-YVP0.37KW,FHZ87RF57-YVP0.55KW,FHZ87RF57-YVP0.75KW,FHZ87RF57-YVP1.1KW,FHZ87RF57-YVP1.5KW,FHZ87RF57-YVP63M4,FHZ87RF57-YVP71M4,FHZ87RF57-YVP80M4,FHZ87RF57-YVP90S4,FHZ87RF57-YVPEJ0.12KW,FHZ87RF57-YVPEJ0.18KW,FHZ87RF57-YVPEJ0.25KW,FHZ87RF57-YVPEJ0.37KW,FHZ87RF57-YVPEJ0.55KW,FHZ87RF57-YVPEJ0.75KW,FHZ87RF57-YVPEJ1.1KW,FHZ87RF57-YVPEJ1.5KW,FHZ87RF57-YVPEJ63M4,FHZ87RF57-YVPEJ71M4,FHZ87RF57-YVPEJ80M4,FHZ87RF57-YVPEJ90S4,FVZ87R57DM63L4,FVZ87R57DM63M4,FVZ87R57DM63MS4,FVZ87R57DM63S4,FVZ87R57DM71D4,FVZ87R57DM71M4,FVZ87R57DM71MS4,FVZ87R57DM71S4,FVZ87R57DM80K4,FVZ87R57DM80M4,FVZ87R57DM80MK4,FVZ87R57DM80N4,FVZ87R57DM80S4,FVZ87R57DM90L4,FVZ87R57DM90M4,FVZ87R57DM90S4,FVZ87R57DR63L4,FVZ87R57DR63M4,FVZ87R57DR63MS4,FVZ87R57DR63S4,FVZ87R57DR71D4,FVZ87R57DR71M4,FVZ87R57DR71MS4,FVZ87R57DR71S4,FVZ87R57DR80K4,FVZ87R57DR80M4,FVZ87R57DR80MK4,FVZ87R57DR80N4,FVZ87R57DR80S4,FVZ87R57DR90L4,FVZ87R57DR90M4,FVZ87R57DR90S4,FVZ87R57DRE63L4,FVZ87R57DRE63M4,FVZ87R57DRE63MS4,FVZ87R57DRE63S4,FVZ87R57DRE71D4,FVZ87R57DRE71M4,FVZ87R57DRE71MS4,FVZ87R57DRE71S4,FVZ87R57DRE80K4,FVZ87R57DRE80M4,FVZ87R57DRE80MK4,FVZ87R57DRE80N4,FVZ87R57DRE80S4,FVZ87R57DRE90L4,FVZ87R57DRE90M4,FVZ87R57DRE90S4,FVZ87R57DRN63L4,FVZ87R57DRN63M4,FVZ87R57DRN63MS4,FVZ87R57DRN63S4,FVZ87R57DRN71D4,FVZ87R57DRN71M4,FVZ87R57DRN71MS4,FVZ87R57DRN71S4,FVZ87R57DRN80K4,FVZ87R57DRN80M4,FVZ87R57DRN80MK4,FVZ87R57DRN80N4,FVZ87R57DRN80S4,FVZ87R57DRN90L4,FVZ87R57DRN90M4,FVZ87R57DRN90S4,FVZ87R57DRS63L4,FVZ87R57DRS63M4,FVZ87R57DRS63MS4,FVZ87R57DRS63S4,FVZ87R57DRS71D4,FVZ87R57DRS71M4,FVZ87R57DRS71MS4,FVZ87R57DRS71S4,FVZ87R57DRS80K4,FVZ87R57DRS80M4,FVZ87R57DRS80MK4,FVZ87R57DRS80N4,FVZ87R57DRS80S4,FVZ87R57DRS90L4,FVZ87R57DRS90M4,FVZ87R57DRS90S4,FVZ87R57DT63L4,FVZ87R57DT63M4,FVZ87R57DT63MS4,FVZ87R57DT63S4,FVZ87R57DT71D4,FVZ87R57DT71M4,FVZ87R57DT71MS4,FVZ87R57DT71S4,FVZ87R57DT80K4,FVZ87R57DT80M4,FVZ87R57DT80MK4,FVZ87R57DT80N4,FVZ87R57DT80S4,FVZ87R57DT90L4,FVZ87R57DT90M4,FVZ87R57DT90S4,FVZ87R57DV63L4,FVZ87R57DV63M4,FVZ87R57DV63MS4,FVZ87R57DV63S4,FVZ87R57DV71D4,FVZ87R57DV71M4,FVZ87R57DV71MS4,FVZ87R57DV71S4,FVZ87R57DV80K4,FVZ87R57DV80M4,FVZ87R57DV80MK4,FVZ87R57DV80N4,FVZ87R57DV80S4,FVZ87R57DV90L4,FVZ87R57DV90M4,FVZ87R57DV90S4,FVZ87R57DVE63L4,FVZ87R57DVE63M4,FVZ87R57DVE63MS4,FVZ87R57DVE63S4,FVZ87R57DVE71D4,FVZ87R57DVE71M4,FVZ87R57DVE71MS4,FVZ87R57DVE71S4,FVZ87R57DVE80K4,FVZ87R57DVE80M4,FVZ87R57DVE80MK4,FVZ87R57DVE80N4,FVZ87R57DVE80S4,FVZ87R57DVE90L4,FVZ87R57DVE90M4,FVZ87R57DVE90S4,FVZ87RF57-Y0.12KW,FVZ87RF57-Y0.18KW,FVZ87RF57-Y0.25KW,FVZ87RF57-Y0.37KW,FVZ87RF57-Y0.55KW,FVZ87RF57-Y0.75KW,FVZ87RF57-Y1.1KW,FVZ87RF57-Y1.5KW,FVZ87RF57-Y63M4,FVZ87RF57-Y71M4,FVZ87RF57-Y80M4,FVZ87RF57-Y90M4,FVZ87RF57-YEJ0.12KW,FVZ87RF57-YEJ0.18KW,FVZ87RF57-YEJ0.25KW,FVZ87RF57-YEJ0.37KW,FVZ87RF57-YEJ0.55KW,FVZ87RF57-YEJ0.75KW,FVZ87RF57-YEJ1.1KW,FVZ87RF57-YEJ1.5KW,FVZ87RF57-YEJ63M4,FVZ87RF57-YEJ71M4,FVZ87RF57-YEJ80M4,FVZ87RF57-YEJ90S4,FVZ87RF57-YVP0.12KW,FVZ87RF57-YVP0.18KW,FVZ87RF57-YVP0.25KW,FVZ87RF57-YVP0.37KW,FVZ87RF57-YVP0.55KW,FVZ87RF57-YVP0.75KW,FVZ87RF57-YVP1.1KW,FVZ87RF57-YVP1.5KW,FVZ87RF57-YVP63M4,FVZ87RF57-YVP71M4,FVZ87RF57-YVP80M4,FVZ87RF57-YVP90S4,FVZ87RF57-YVPEJ0.12KW,FVZ87RF57-YVPEJ0.18KW,FVZ87RF57-YVPEJ0.25KW,FVZ87RF57-YVPEJ0.37KW,FVZ87RF57-YVPEJ0.55KW,FVZ87RF57-YVPEJ0.75KW,FVZ87RF57-YVPEJ1.1KW,FVZ87RF57-YVPEJ1.5KW,FVZ87RF57-YVPEJ63M4,FVZ87RF57-YVPEJ71M4,FVZ87RF57-YVPEJ80M4,FVZ87RF57-YVPEJ90S4,FAZ87R57DM63L4,FAZ87R57DM63M4,FAZ87R57DM63MS4,FAZ87R57DM63S4,FAZ87R57DM71D4,FAZ87R57DM71M4,FAZ87R57DM71MS4,FAZ87R57DM71S4,FAZ87R57DM80K4,FAZ87R57DM80M4,FAZ87R57DM80MK4,FAZ87R57DM80N4,FAZ87R57DM80S4,FAZ87R57DM90L4,FAZ87R57DM90M4,FAZ87R57DM90S4,FAZ87R57DR63L4,FAZ87R57DR63M4,FAZ87R57DR63MS4,FAZ87R57DR63S4,FAZ87R57DR71D4,FAZ87R57DR71M4,FAZ87R57DR71MS4,FAZ87R57DR71S4,FAZ87R57DR80K4,FAZ87R57DR80M4,FAZ87R57DR80MK4,FAZ87R57DR80N4,FAZ87R57DR80S4,FAZ87R57DR90L4,FAZ87R57DR90M4,FAZ87R57DR90S4,FAZ87R57DRE63L4,FAZ87R57DRE63M4,FAZ87R57DRE63MS4,FAZ87R57DRE63S4,FAZ87R57DRE71D4,FAZ87R57DRE71M4,FAZ87R57DRE71MS4,FAZ87R57DRE71S4,FAZ87R57DRE80K4,FAZ87R57DRE80M4,FAZ87R57DRE80MK4,FAZ87R57DRE80N4,FAZ87R57DRE80S4,FAZ87R57DRE90L4,FAZ87R57DRE90M4,FAZ87R57DRE90S4,FAZ87R57DRN63L4,FAZ87R57DRN63M4,FAZ87R57DRN63MS4,FAZ87R57DRN63S4,FAZ87R57DRN71D4,FAZ87R57DRN71M4,FAZ87R57DRN71MS4,FAZ87R57DRN71S4,FAZ87R57DRN80K4,FAZ87R57DRN80M4,FAZ87R57DRN80MK4,FAZ87R57DRN80N4,FAZ87R57DRN80S4,FAZ87R57DRN90L4,FAZ87R57DRN90M4,FAZ87R57DRN90S4,FAZ87R57DRS63L4,FAZ87R57DRS63M4,FAZ87R57DRS63MS4,FAZ87R57DRS63S4,FAZ87R57DRS71D4,FAZ87R57DRS71M4,FAZ87R57DRS71MS4,FAZ87R57DRS71S4,FAZ87R57DRS80K4,FAZ87R57DRS80M4,FAZ87R57DRS80MK4,FAZ87R57DRS80N4,FAZ87R57DRS80S4,FAZ87R57DRS90L4,FAZ87R57DRS90M4,FAZ87R57DRS90S4,FAZ87R57DT63L4,FAZ87R57DT63M4,FAZ87R57DT63MS4,FAZ87R57DT63S4,FAZ87R57DT71D4,FAZ87R57DT71M4,FAZ87R57DT71MS4,FAZ87R57DT71S4,FAZ87R57DT80K4,FAZ87R57DT80M4,FAZ87R57DT80MK4,FAZ87R57DT80N4,FAZ87R57DT80S4,FAZ87R57DT90L4,FAZ87R57DT90M4,FAZ87R57DT90S4,FAZ87R57DV63L4,FAZ87R57DV63M4,FAZ87R57DV63MS4,FAZ87R57DV63S4,FAZ87R57DV71D4,FAZ87R57DV71M4,FAZ87R57DV71MS4,FAZ87R57DV71S4,FAZ87R57DV80K4,FAZ87R57DV80M4,FAZ87R57DV80MK4,FAZ87R57DV80N4,FAZ87R57DV80S4,FAZ87R57DV90L4,FAZ87R57DV90M4,FAZ87R57DV90S4,FAZ87R57DVE63L4,FAZ87R57DVE63M4,FAZ87R57DVE63MS4,FAZ87R57DVE63S4,FAZ87R57DVE71D4,FAZ87R57DVE71M4,FAZ87R57DVE71MS4,FAZ87R57DVE71S4,FAZ87R57DVE80K4,FAZ87R57DVE80M4,FAZ87R57DVE80MK4,FAZ87R57DVE80N4,FAZ87R57DVE80S4,FAZ87R57DVE90L4,FAZ87R57DVE90M4,FAZ87R57DVE90S4,FAZ87RF57-Y0.12KW,FAZ87RF57-Y0.18KW,FAZ87RF57-Y0.25KW,FAZ87RF57-Y0.37KW,FAZ87RF57-Y0.55KW,FAZ87RF57-Y0.75KW,FAZ87RF57-Y1.1KW,FAZ87RF57-Y1.5KW,FAZ87RF57-Y63M4,FAZ87RF57-Y71M4,FAZ87RF57-Y80M4,FAZ87RF57-Y90M4,FAZ87RF57-YEJ0.12KW,FAZ87RF57-YEJ0.18KW,FAZ87RF57-YEJ0.25KW,FAZ87RF57-YEJ0.37KW,FAZ87RF57-YEJ0.55KW,FAZ87RF57-YEJ0.75KW,FAZ87RF57-YEJ1.1KW,FAZ87RF57-YEJ1.5KW,FAZ87RF57-YEJ63M4,FAZ87RF57-YEJ71M4,FAZ87RF57-YEJ80M4,FAZ87RF57-YEJ90S4,FAZ87RF57-YVP0.12KW,FAZ87RF57-YVP0.18KW,FAZ87RF57-YVP0.25KW,FAZ87RF57-YVP0.37KW,FAZ87RF57-YVP0.55KW,FAZ87RF57-YVP0.75KW,FAZ87RF57-YVP1.1KW,FAZ87RF57-YVP1.5KW,FAZ87RF57-YVP63M4,FAZ87RF57-YVP71M4,FAZ87RF57-YVP80M4,FAZ87RF57-YVP90S4,FAZ87RF57-YVPEJ0.12KW,FAZ87RF57-YVPEJ0.18KW,FAZ87RF57-YVPEJ0.25KW,FAZ87RF57-YVPEJ0.37KW,FAZ87RF57-YVPEJ0.55KW,FAZ87RF57-YVPEJ0.75KW,FAZ87RF57-YVPEJ1.1KW,FAZ87RF57-YVPEJ1.5KW,FAZ87RF57-YVPEJ63M4,FAZ87RF57-YVPEJ71M4,FAZ87RF57-YVPEJ80M4,FAZ87RF57-YVPEJ90S4。
F88R58減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.titostamales.com/product/list-fxiliejiansuji-cn.html
推薦型號：F88減速機
關鍵詞:GF型配減速器的電機一體式_F系列減速機_F系列減速器_減速機配電機_配減速器的電機_配減速機的電機_電機配減速機_GF系列減速機_F型減速機_F型平行軸斜齒輪減速機_減速器配電機
F系列齒輪減速馬達型號：F28減速機,F38減速機,F48減速機,F68減速機,F78減速機,F88減速機,F98減速機,F108減速機,F128減速機,F158減速機
F系列電動機減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: FHZ87R57 FVZ87R57 FAZ87R57 F87RF57
跟此產品相關的文檔 / Related DownLoad
| 產品文件名稱 | 點擊下載 |
| F88R58減速機三維圖紙下載3D |
|
| F+RF組合減速機樣本 |
|
